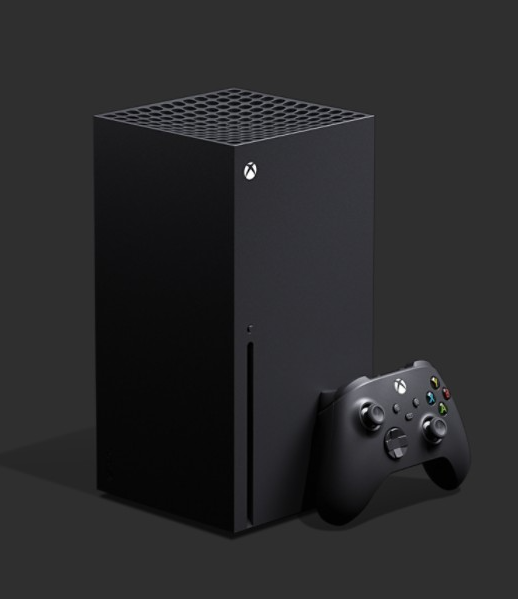

XBOX Series X

General

• Model: Xbox Series X

• Manufacturer: Microsoft

• Type: Home video game console (disc edition)

CPU / GPU / Memory

• CPU: Custom AMD Zen 2 CPU, 8 cores.

• GPU: Custom AMD RDNA 2 GPU (approx. 12 TFLOPS).

• Memory: 16 GB GDDR6 RAM.

Storage

• Internal Storage: 1 TB custom NVMe SSD (usable capacity lower after system software — typically ~802 GB usable).

• Expandable Storage: Official Seagate Storage Expansion Card (fits dedicated expansion slot).

• External Storage: USB 3.1 external HDD (for Xbox One games and storage; PS5/Xbox Series games must run from internal/expansion NVMe to play).

Optical Drive

• Disc Drive: 4K UHD Blu-ray drive (BD-ROM / BD-R / BD-RE / DVD support).

Video & Audio

• Video Output: HDMI 2.1 — supports 4K at 60/120Hz (title/TV dependent), HDR10, and 8K passthrough support where applicable.

• Audio: Spatial audio technologies supported (e.g., Dolby Atmos on supported apps/headsets).

Connectivity

• Wi-Fi: Wi-Fi 5 or Wi-Fi 6 (model/region dependent; generally supports 802.11ax).

• Ethernet: Gigabit Ethernet (RJ-45).

• Bluetooth: For accessories (controller uses Xbox Wireless protocol; Bluetooth on controller for some PC uses).

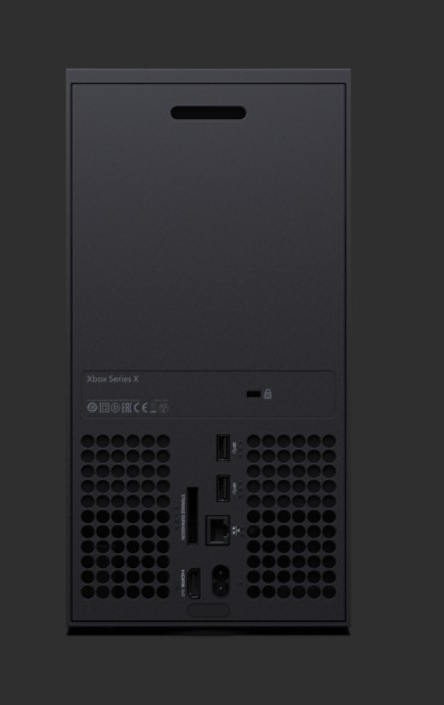

• USB Ports: USB Type-A 3.x ports (varies by model).

• HDMI: HDMI 2.1 (HDCP 2.3).

Controller

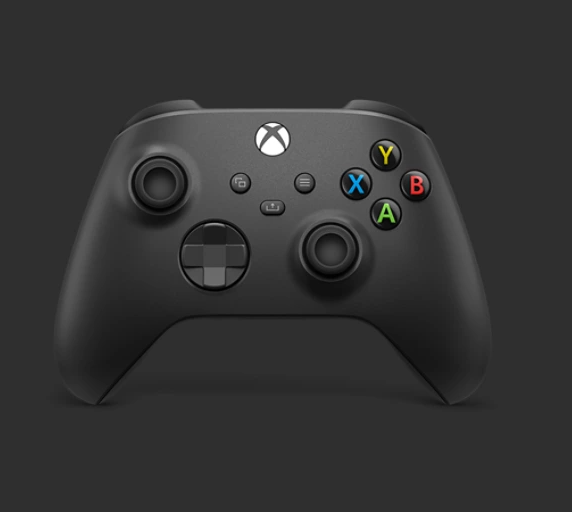

• Included: Xbox Wireless Controller.

• Controller Features: Wireless, textured grip, share button, USB-C charging on some controller revisions.

Dimensions & Weight

• Dimensions (approx): 151 mm × 151 mm × 301 mm (W × D × H).

• Weight (approx): ~4.4–4.6 kg (varies by batch/packaging).

Replace with official numbers from packaging if required by marketplace.

Features

• Quick Resume: Resume multiple games quickly.

• Backwards Compatibility: Plays thousands of Xbox One / Xbox 360 / Original Xbox titles (varies by title).

• Performance Modes: Game-specific options for prioritising frame rate or resolution.

Package Contents

• 1 × Xbox Series X Console

• 1 × Xbox Wireless Controller

• 1 × HDMI 2.1 cable

• 1 × AC power cord

• Manuals & warranty info

Warranty & Support

• Manufacturer warranty: region dependent (commonly 1 year).

• Support: Microsoft/Xbox Support; firmware updates via system settings.

Note: Some exact numeric values (usable storage, TFLOPS rounding, Wi-Fi spec, weight) can vary slightly by revision and region — verify against the unit’s spec sheet or Microsoft product page for absolute accuracy.

What is the difference between Xbox Series X and Series S?

Xbox Series X is the high-end model with a 4K UHD Blu-ray drive, more GPU power, and a 1TB internal NVMe SSD. Series S is a smaller, disc-less console aimed at 1440p performance with lower internal storage and less GPU power.

How much storage is usable on the Xbox Series X?

The console includes a 1TB NVMe SSD, but a portion is used by the system — usable capacity is typically around ~802 GB. You can expand storage using the official Seagate Storage Expansion Card.

Can I play my Xbox One and Xbox 360 games on Series X?

Yes, the Xbox Series X supports backwards compatibility for thousands of Xbox One, Xbox 360, and original Xbox titles. Some discs will run directly from the disc, and digital purchases tied to your account will be available to download.
